Product Description

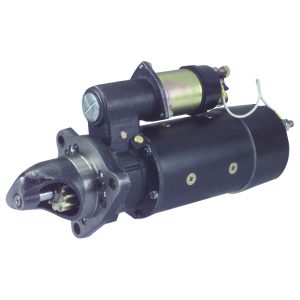

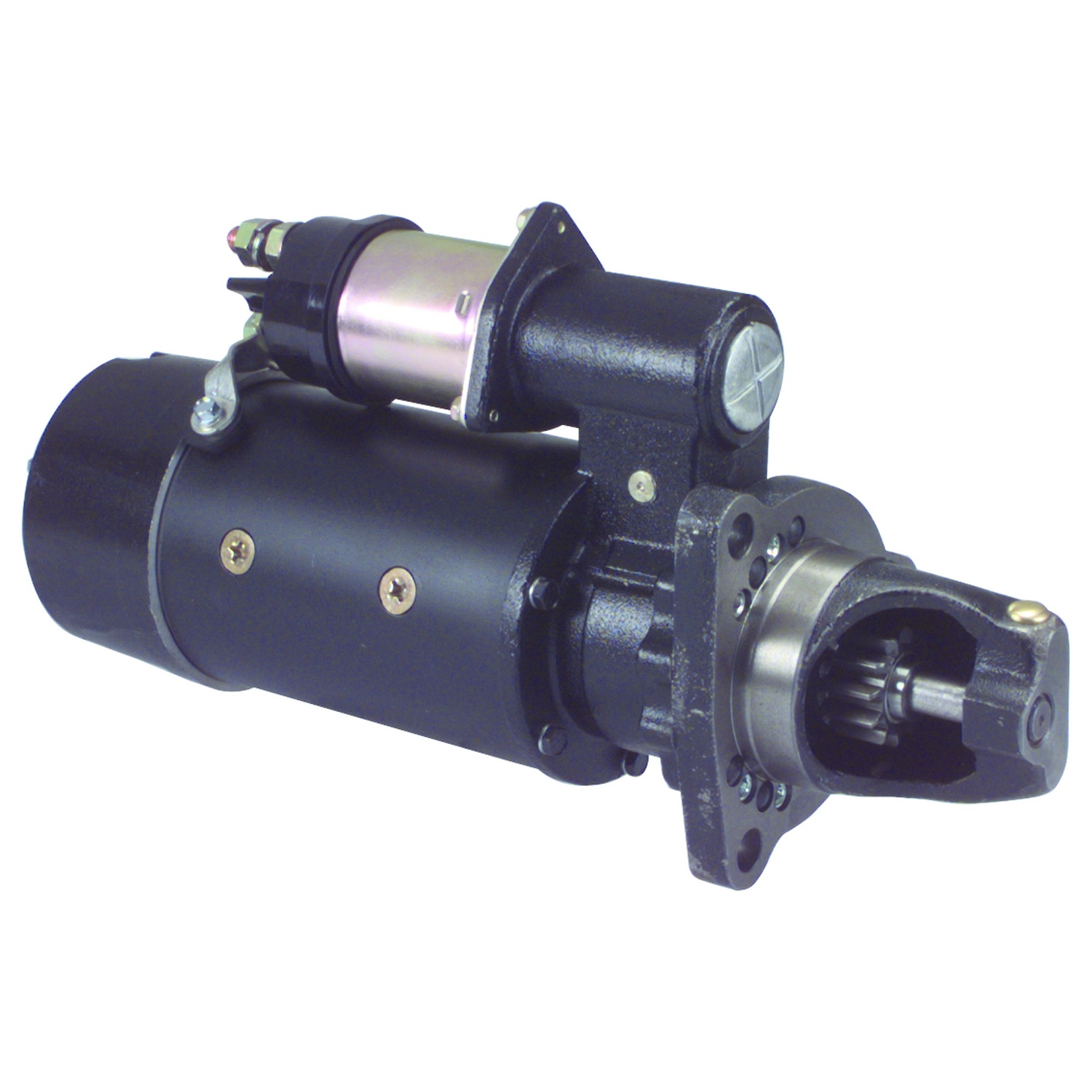

Starter Replacement for Delco 24 Volt CW 12-Tooth Pinion
Starter
Specs
24 Volt, CW, 12-Tooth Pinion
Delco 42MT DD
MFR:DELCOMFR SERIES:42 MTDESIGN:DDVOLTAGE:24 ROTATION:CW TEETH:12
For :Used On:
Case (1980-2003)
Caterpillar Ag. & Ind. (1985-2000)
Consolidated Diesel (1991-1992)
Cummins Engines (1983-1985)
Fiat-Allis (1984-1995)
John Deere (1984-1985)
Timberjack (1995-1995)
Replaces:
Case 114769A1, A187568, L118276
Caterpillar 0R2186, 0R4256, 0R4257, 106-8552, 3T2579, 3T4586, 4N3182, 6V5207, 6V5537, 8C3651, 9G4339
Cummins 3011895, 3604484RX, 3604784RX, 3675120RX, 3902661, 3907821, 3910646, 3938502, Delco 10461031, 10461136, 10461345, 10461357, 10461358, 10478939, 10478942, 10478995, 10479115, 10479120, 10479136, 10479178, 10479225, 10479245, 1990357, 1990359, 1990433, 1990453, 1990457, 1990497, 1993797, 1993804, 1993809, 1993814, 1993833, 1993929, 1993940, 1993944
Dresser Engine Mfr 1034953H91
Euclid E-821131X
Ford F6HT-11001-EA, F6HZ-11002-EA
John Deere RE28782, RE63094, RE69591, SE501454
Letrika (Iskra) 11.131.905
Prestolite MS1-410A
Delco 42MT DD
Notes:Starter Replacement for Delco 24 Volt CW 12-Tooth Pinion
Solenoids are 100% tested for coil strength, voltage drop across contacts and ‘reserve burnoff’ on the contacts
100% computerized load tested
Features:
100% New
Armature with heat treated shaft and welded steel-core riserless commutator
Varnish dipped field coils
Ductile iron D.E. housing
Painted gloss black with zinc plated hardware
Also See:
3948N;6360N-Z
Lester Nos:
6222, 6250, 6360, 6369, 6779
Application:Starter Replacement
Case Tractor
1550 6-830 Diesel 1985-1990
Case Wheel Loader
821 6T-830 Diesel 1989-1993Caterpillar Compactor
815B Cat. 3306 1985-1989
815B Cat. 3306 1991-1996
815F Cat. 3306 1995-1996
816B Cat. 3306 1985-1989
816B Cat. 3306 1991-1996
816F Cat. 3306 1995-1996
Caterpillar Engine – Marine
3208 8cyl, 636ci, 10.4L 1985-1995
3304 4cyl, 425ci, 7.0L 1985-1995
3306 6cyl, 638ci, 10.5L 1985-1995
Caterpillar Excavator
225 Cat. 3208 1985-1986
225B Cat. 3304 1986-1992
225D Cat. 3304 1986-1992
227 Cat. 3208 1986-1992
229A Cat. 3304 1986-1992
229D Cat. 3304 1986-1992
235 Cat. 3306 1985-1986
235B Cat. 3306 1986-1992
235C Cat. 3306 1988-1992
235D Cat. 3306 1988-1992
245B Cat. 3406 1989-1992
245D Cat. 3406 1989-1992
Caterpillar Forestry Loader
FB227 Cat. 3208 1985-1993
Caterpillar Pipelayer
561D Cat. 3306 1985-1992
571G Cat. 3306 1986-1992
572G Cat. 3306 1986-1992
Caterpillar Scraper
613C Cat. 3208 1985-1993
615 3306 Engine 1986-1987
615C Cat. 3306 1985-1993
627E Cat. 3306 1986-1993
637E Cat. 3306 1986-1991
Caterpillar Track Loader
973 Cat. 3306 1985-1995
Caterpillar Track Tractor
D4E Cat. 3304 1985-1986
D4H Cat. 3304 1985-1996
Caterpillar Wheel Loader
966D Cat. 3306 1985-1987
966E Cat. 3306 1987-1990
966F Cat. 3306 1990-1996
Caterpillar Wheel Skidder
518 Cat. 3304 1985
528 Cat. 3306 1985-1995
Caterpillar Wheel Tractor Dozer
814B Cat. 3306 1985-1995
Consolidated Diesel Engine Heavy Duty
6C 8.3L Eng 1991-1992
Fiat-Allis Crawlers
10C 8365 Diesel 1984-1986
10CL 8365 Diesel 1984-1986
10CTA 8365 Diesel 1984-1985
FD-10C 8365 Diesel 1984-1985
Fiat-Allis Grader
FG-75 8365 Diesel 1984-1985
FG-85 8365 Diesel 1984-1985
FG-95 8365 Diesel 1984-1985
Fiat-Allis Wheel Loader
FL-10C 8365 Diesel 1984-1986
FR-15 8365 Diesel 1984-1986
FR-15B 8365 Diesel 1985-1995
Timberjack Feller Buncher
2618 Cummins 8.3L Diesel 1995
2628 Cummins 8.3L Diesel 1995
618 Cummins 8.3L Diesel 1995
628 Cummins 8.3L Diesel 1995
References:Starter Replacement
323-859, 323-933, CM-5095, CM6360N, SO-00552R, 104-6360, 510-6361, BSO7191, 110999, A187568, 0R2186, 3T2579, 3T4586, 4N3182, 8C3651, 9G4339, 9043, 9108, 6360S, 3011895, 3604484RX, 3604784RX, 3902661, 3907821, 3910646, 3938502, 10461031, 10461136, 10461357, 10461358, 10479115, 10479136, 10479225, 1990359, 1990433, 1990453, 1990457, 1990497, 1993804, 1993809, 1993814, 10461025, TS-1502, TS-1687, 201-42201, 1034953H91, 672014124, 6360SD, S-6360, 011103643A, E-821131X, 2A-0099, 410-12059R, 410-12060, 410-12060R, 410-12224, D2-0093, D2-0303N, S1085, S1339, S1375, S1455, S4242, 6360, IS 1179, 6807M, RS142004X, 57-1266, X76360, X76360N, 76360, 76360N, 6363, STR-4303, MS1-410A, 402412, 422412, 460814, 467050, 467054, 23353A, 23381A, 23381AV, 20409010, 20409020, DRZ5166, 63226, 41-6360, 6360N, IND-2610366, 50-152, 50-152-1, 50-152-2, 6360N-Z, 85003, 91-01-4158, SDV3064, STR20032, STR4303
Voltage:24
Rotation:CW
System:DD
Pinion:12-Tooth
Features:New
Warranty:1 Year
Lester No.:
6360
