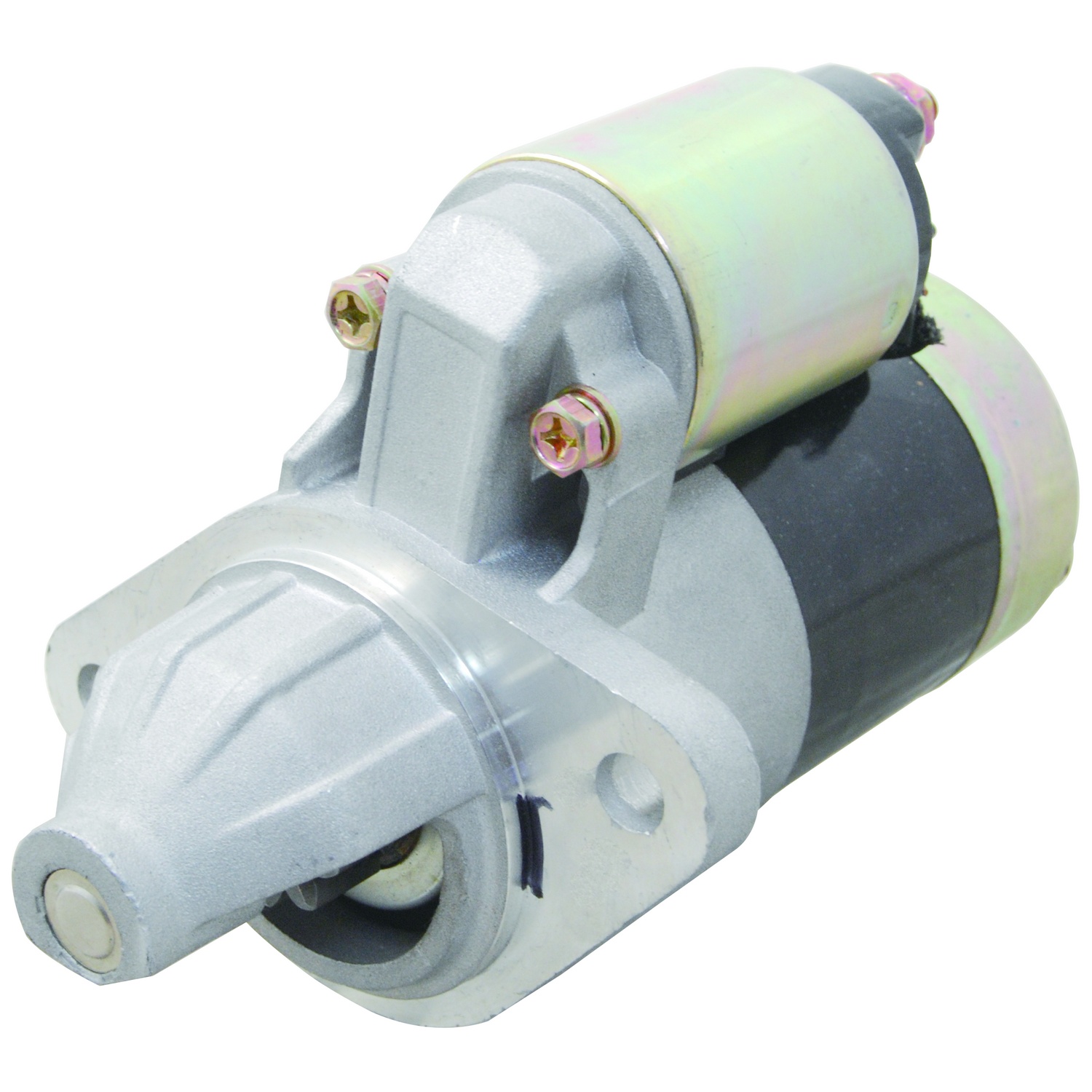

18209N
For :
Hitachi DD
Features:
100% New
Used On:
Yanmar (1980-1990)
Replaces:
Hitachi S114-303, S114-303A
Yanmar 128170-77010, 128170-77010D
Lester Nos: 18209
Voltage:12 Volts
kW:1.2 kW
Rotation:CWTeeth/Splines:9 Teeth/Splines
Pinion/Splines OD:29.1mm / 1.146in
Mounting Hole 1:10.7 ID Unthreaded
Mounting Hole 2:10.7 ID Unthreaded
New or Remanufactured:NewApproximate Weight:7.9 lbs / 3.59 kg
| WAI | Year | Make | Model | Engine | Remarks | Remarks | Remarks | Vehicle Type Name | Vehicle Type Group Name |
|---|---|---|---|---|---|---|---|---|---|
| 18209N | 0000 | Yanmar | KM2A | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 0000 | Yanmar | KM2C | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 0000 | Yanmar | KM2P | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 0000 | Yanmar | KM3A | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 0000 | Yanmar | KM3P | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 0000 | Yanmar | KM3V | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1980 | Yanmar | 1GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1980 | Yanmar | 2GM | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1980 | Yanmar | 2GMF | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1980 | Yanmar | 3GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1981 | Yanmar | 1GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1981 | Yanmar | 1GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1981 | Yanmar | 2GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1981 | Yanmar | 2GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1981 | Yanmar | 2GMF | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1981 | Yanmar | 3GM | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1981 | Yanmar | 3GM | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1982 | Yanmar | 1GM | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1982 | Yanmar | 1GM | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1982 | Yanmar | 1GM10 | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1982 | Yanmar | 1GM10C | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1982 | Yanmar | 2GM | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1982 | Yanmar | 2GM | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1982 | Yanmar | 2GM20 | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1982 | Yanmar | 2GMF | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1982 | Yanmar | 3GM | 1cyl, 19.41ci, 0.318L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1982 | Yanmar | 3GM | 2cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1982 | Yanmar | 3GM30 | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1982 | Yanmar | 3GMD | 2cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1982 | Yanmar | 3GMF | 2cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1983 | Yanmar | 1GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1983 | Yanmar | 1GM | 2cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1983 | Yanmar | 1GM10 | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1983 | Yanmar | 1GM10C | 2cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1983 | Yanmar | 2GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1983 | Yanmar | 2GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1983 | Yanmar | 2GM20 | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1983 | Yanmar | 2GMF | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1983 | Yanmar | 3GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1983 | Yanmar | 3GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1983 | Yanmar | 3GM30 | 2cyl, 38.81ci, 0.636L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1983 | Yanmar | 3GMD | 2cyl, 38.81ci, 0.636L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1983 | Yanmar | 3GMF | 2cyl, 38.81ci, 0.636L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1984 | Yanmar | 1GM | 2cyl, 38.81ci, 0.636L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1984 | Yanmar | 1GM | 2cyl, 38.81ci, 0.636L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1984 | Yanmar | 1GM10 | 2cyl, 38.81ci, 0.636L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1984 | Yanmar | 1GM10C | 2cyl, 38.81ci, 0.636L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1984 | Yanmar | 2GM | 2cyl, 38.81ci, 0.636L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1984 | Yanmar | 2GM | 2cyl, 38.81ci, 0.636L Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1984 | Yanmar | 2GM20 | 2cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1984 | Yanmar | 2GMF | 2cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1984 | Yanmar | 3GM | 2cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1984 | Yanmar | 3GM | 2cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1984 | Yanmar | 3GM30 | 2cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1984 | Yanmar | 3GMD | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1984 | Yanmar | 3GMF | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1985 | Yanmar | 1GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1985 | Yanmar | 1GM10 | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1985 | Yanmar | 2GM | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1985 | Yanmar | 2GM20 | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1985 | Yanmar | 3GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1985 | Yanmar | 3GM30 | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1985 | Yanmar | 3GMD | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1985 | Yanmar | 3GMF | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1986 | Yanmar | 1GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1986 | Yanmar | 1GM10 | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1986 | Yanmar | 2GM | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1986 | Yanmar | 2GM20 | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1986 | Yanmar | 3GM | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1986 | Yanmar | 3GM30 | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1986 | Yanmar | 3GMD | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1986 | Yanmar | 3GMF | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1987 | Yanmar | 1GM | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1987 | Yanmar | 1GM10 | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1987 | Yanmar | 2GM | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1987 | Yanmar | 2GM20 | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1987 | Yanmar | 3GM | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1987 | Yanmar | 3GM30 | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1987 | Yanmar | 3GMD | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1987 | Yanmar | 3GMF | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1988 | Yanmar | 1GM | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1988 | Yanmar | 1GM10 | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1988 | Yanmar | 2GM | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1988 | Yanmar | 2GM20 | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1988 | Yanmar | 3GM | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1988 | Yanmar | 3GM30 | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1988 | Yanmar | 3GMD | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1988 | Yanmar | 3GMF | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1989 | Yanmar | 1GM | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1989 | Yanmar | 1GM10 | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1989 | Yanmar | 2GM | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1989 | Yanmar | 2GM20 | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1989 | Yanmar | 3GM | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1989 | Yanmar | 3GM30 | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1989 | Yanmar | 3GMD | 3cyl Diesel | Hitachi System | Engine - Marine | Marine | ||
| 18209N | 1989 | Yanmar | 3GMF | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1990 | Yanmar | 1GM10 | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1990 | Yanmar | 2GM20 | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1990 | Yanmar | 3GM30 | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1990 | Yanmar | 3GMD | Hitachi System | Engine - Marine | Marine | |||
| 18209N | 1990 | Yanmar | 3GMF | Hitachi System | Engine - Marine | Marine |
