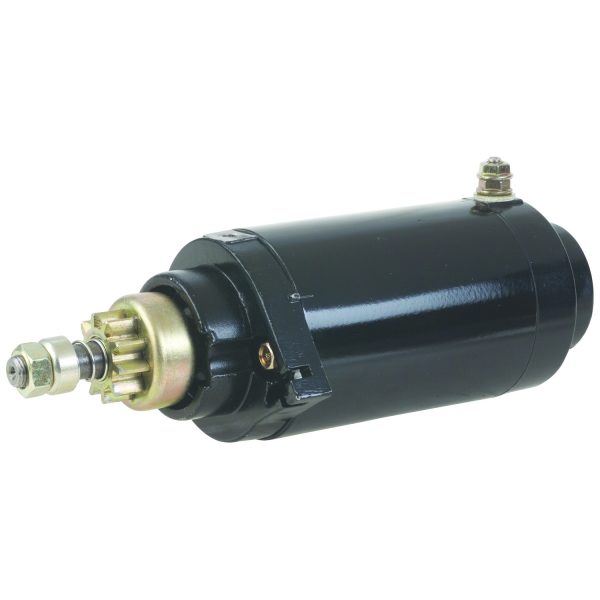

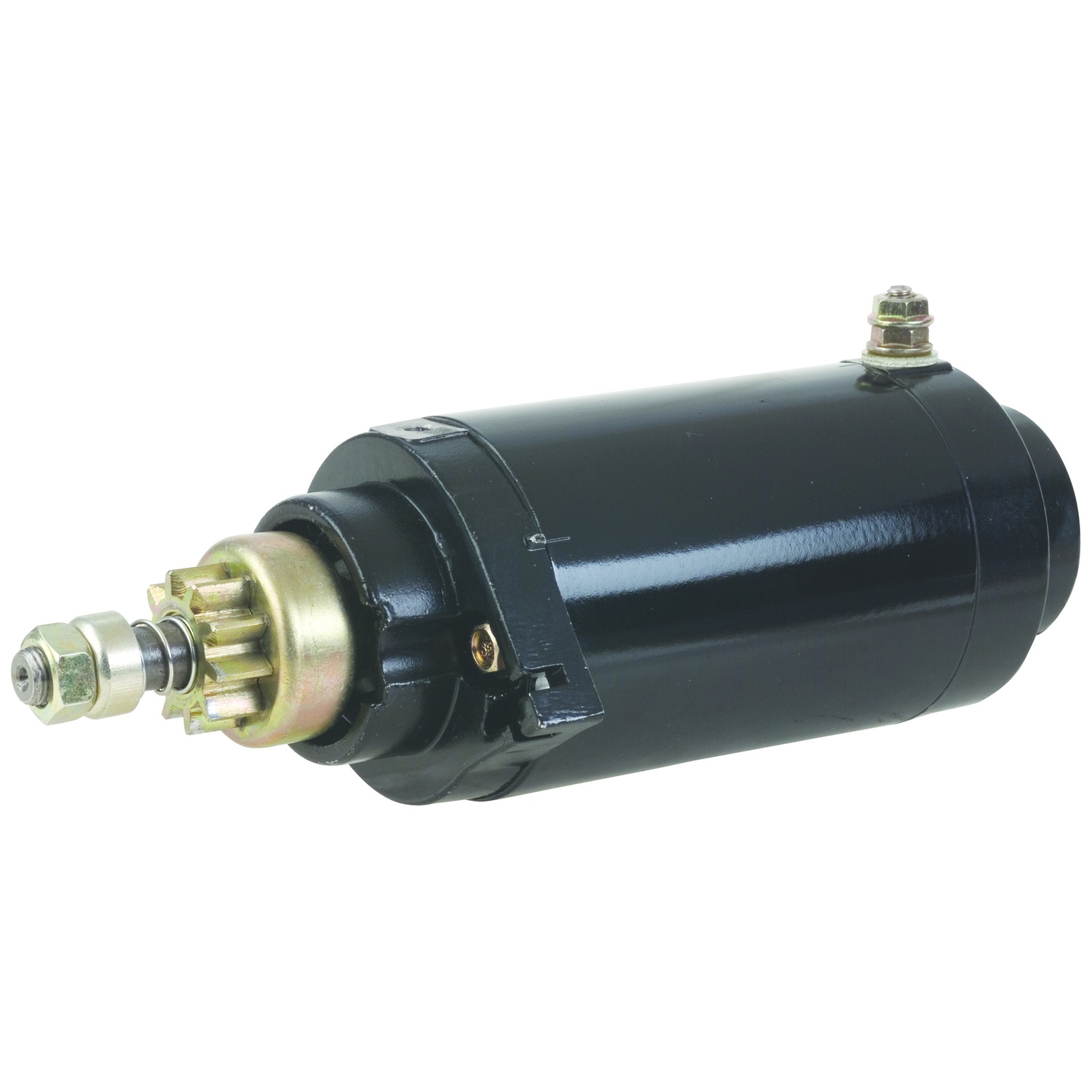

Product Description

5401N
For :
United Technologies PMDD
Dimensions:
4 in. Motor Hsg. L
Features:
100% New
Used On:
Mariner (1984-1997)
Mercury (1984-1997)
Replaces:
Mercury Marine 50-44369, 50-44369A1
Prestolite 20513538TBA
United Technologies 4820340-M030SM, 4820340MO30SM, SM47764, SM48203
Lester Nos:
5401
Voltage:12 Volts
Rotation:CCW
Teeth/Splines:10 Teeth/Splines
Pinion/Splines OD:32.1mm / 1.264in
New
Approximate Weight: 6.065 lbs / 2.76 kg
Notes:
Includes (1) 4.5mm Hole on Triangular Ear & (1) 1/4-20 Threaded Hole on Side of Drive Cap, 4.118″ / 104.6mm Field Case Length

Specification

WAI	Year	Make	Model	Remarks	Remarks	Vehicle Type Name	Vehicle Type Group Name
5401N	1984	Mariner	60EL	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1984	Mariner	60ELPT	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1985	Mariner	60EL	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1985	Mariner	60ELPT	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1986	Mariner	50ELO	49.8ci - 50 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1986	Mariner	50ELPTO	49.8ci - 50 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1986	Mariner	60ELO	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1986	Mariner	60ELPTO	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1987	Mariner	50ELO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1987	Mariner	50ELPTO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1987	Mariner	60ELO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1987	Mariner	60ELPTO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1988	Mariner	50ELO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1988	Mariner	50ELPTO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1988	Mariner	60ELO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1988	Mariner	60ELPTO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1989	Mariner	50ELO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1989	Mariner	50ELPTO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1989	Mariner	60ELO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1989	Mariner	60ELPTO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1990	Mariner	50ELO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1990	Mariner	50ELPTO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1990	Mariner	60ELO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1990	Mariner	60ELPTO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1991	Mariner	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1991	Mariner	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1991	Mariner	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1991	Mariner	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1992	Mariner	50ELHPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1992	Mariner	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1992	Mariner	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1992	Mariner	50EO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1992	Mariner	60ELHPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1992	Mariner	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1992	Mariner	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1992	Mariner	60EO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1993	Mariner	50ELHPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1993	Mariner	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1993	Mariner	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1993	Mariner	50EO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1993	Mariner	60ELHPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1993	Mariner	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1993	Mariner	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1993	Mariner	60EO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1994	Mariner	50ELHPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1994	Mariner	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1994	Mariner	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1994	Mariner	50EO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1994	Mariner	60ELHPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1994	Mariner	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1994	Mariner	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1994	Mariner	60EO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1995	Mariner	50ELHPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1995	Mariner	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1995	Mariner	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1995	Mariner	60ELHPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1995	Mariner	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1995	Mariner	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1995	Mariner	60ELPTO Big Foot	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1995	Mariner	60EO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1995	Mariner	60EO Jet 45	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1996	Mariner	50ELHPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1996	Mariner	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1996	Mariner	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1996	Mariner	60ELHPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1996	Mariner	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1996	Mariner	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1996	Mariner	60ELPTO Big Foot	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1996	Mariner	60EO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1996	Mariner	60EO Jet 45	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1997	Mariner	50ELHPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1997	Mariner	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1997	Mariner	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1997	Mariner	60ELHPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1997	Mariner	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1997	Mariner	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1997	Mariner	60ELPTO Big Foot	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1997	Mariner	60EO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1997	Mariner	60EO Jet 45	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1984	Mercury	60E	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1984	Mercury	60EL	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1984	Mercury	60ELPT	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1985	Mercury	60EL	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1985	Mercury	60ELPT	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1986	Mercury	50ELO	49.8ci - 50 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1986	Mercury	50ELPTO	49.8ci - 50 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1986	Mercury	60ELO	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1986	Mercury	60ELPTO	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1987	Mercury	50ELO	49.8ci - 50 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1987	Mercury	50ELPTO	49.8ci - 50 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1987	Mercury	60ELO	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1987	Mercury	60ELPTO	49.8ci - 60 H.P.	Match OE #4820340M030SM	Engine - Marine	Marine
5401N	1988	Mercury	50ELO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1988	Mercury	50ELPTO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1988	Mercury	60ELO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1988	Mercury	60ELPTO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1989	Mercury	50ELO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1989	Mercury	50ELPTO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1989	Mercury	60ELO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1989	Mercury	60ELPTO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1990	Mercury	50ELO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1990	Mercury	50ELPTO	49.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1990	Mercury	60ELO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1990	Mercury	60ELPTO	49.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1991	Mercury	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1991	Mercury	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1991	Mercury	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1991	Mercury	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1992	Mercury	50ELHPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1992	Mercury	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1992	Mercury	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1992	Mercury	50EO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1992	Mercury	60ELHPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1992	Mercury	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1992	Mercury	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1992	Mercury	60EO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1993	Mercury	50ELHPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1993	Mercury	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1993	Mercury	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1993	Mercury	50EO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1993	Mercury	60ELHPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1993	Mercury	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1993	Mercury	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1993	Mercury	60EO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1994	Mercury	50ELHPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1994	Mercury	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1994	Mercury	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1994	Mercury	50EO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1994	Mercury	60ELHPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1994	Mercury	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1994	Mercury	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1994	Mercury	60EO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1994	Mercury	60EO Jet 45	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1995	Mercury	50ELHPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1995	Mercury	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1995	Mercury	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1995	Mercury	50EO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1995	Mercury	60ELHPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1995	Mercury	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1995	Mercury	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1995	Mercury	60ELPTO Big Foot	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1995	Mercury	60EO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1995	Mercury	60EO Jet 45	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1996	Mercury	50ELHPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1996	Mercury	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1996	Mercury	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1996	Mercury	60ELHPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1996	Mercury	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1996	Mercury	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1996	Mercury	60ELPTO Big Foot	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1996	Mercury	60EO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1996	Mercury	60EO Jet 45	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1997	Mercury	50ELHPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1997	Mercury	50ELO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1997	Mercury	50ELPTO	51.8ci - 50 H.P.		Engine - Marine	Marine
5401N	1997	Mercury	60ELHPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1997	Mercury	60ELO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1997	Mercury	60ELPTO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1997	Mercury	60ELPTO Big Foot	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1997	Mercury	60EO	51.8ci - 60 H.P.		Engine - Marine	Marine
5401N	1997	Mercury	60EO Jet 45	51.8ci - 60 H.P.		Engine - Marine	Marine

Prestolite 20513538TBA

Starter-United Technologies PMDD - Outboard Mariner Mercury - Prestolite 20513538TBA

Product Description

Specification

Prestolite 20513504TBA, MGL4001, MGL4001A, MGL4001B, MJL4002, MJL4002A

Mercury Marine 50-55304A-1, 50-57465, 50-57465A1, 50-57867, 50-58330, 50-72467

OMC 4820140

United Technologies 5275640-M030SM, 5275640MO30SM, 5672740-M030SM, 5672740MO30SM, SM52756, SM56727

Prestolite 20513538TBA

Starter-United Technologies PMDD - Outboard Mariner Mercury - Prestolite 20513538TBA

Product Description

Specification

Related Products

Prestolite 20513504TBA, MGL4001, MGL4001A, MGL4001B, MJL4002, MJL4002A

Mercury Marine 50-55304A-1, 50-57465, 50-57465A1, 50-57867, 50-58330, 50-72467

OMC 4820140

United Technologies 5275640-M030SM, 5275640MO30SM, 5672740-M030SM, 5672740MO30SM, SM52756, SM56727
