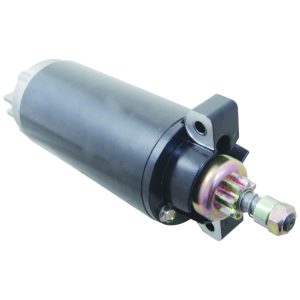

Product Description

5399N
For :
United Technologies PMDD
Dimensions:
4 in. Motor Hsg. L
Features:
100% New
Used On:
Mariner (1980-1997)
Mercury (1976-1997)
Replaces:
Mercury Marine 50-73521, 50-73521-1
United Technologies 1097028-M030SM, 1097028MO30SM, 4820240-M030SM, 4820240MO30SM, 996240, SM10790, SM10970, SM48202
Sierra Marine 185605
United Technologies 1097028MO30SM, 4820240MO30SM, 996240, SM10790, SM10970,
Lester Nos:
5399
Voltage: 12
Rotation: CCW
Starter Type: PMDD
Number of Teeth: 10
Gear OD: 1.213in / 30.8mm
Mtg Ear 1 Hole: 1/4-20 Threaded
Notes:
4.11″ / 104.5mm Field Housing Length
Weight: 6.1 lbs / 2.77 kg

Specification

WAI	Year	Make	Model	Remarks	Remarks	Vehicle Type Name	Vehicle Type Group Name
5399N	1980	Mariner	50E	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1980	Mariner	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1980	Mariner	50ELH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1980	Mariner	50ELPT	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1981	Mariner	50E	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1981	Mariner	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1981	Mariner	50ELH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1981	Mariner	50ELPT	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1982	Mariner	50E	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1982	Mariner	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1982	Mariner	50ELH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1982	Mariner	50ELPT	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1983	Mariner	50E	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1983	Mariner	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1983	Mariner	50ELH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1983	Mariner	50ELPT	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1984	Mariner	50E	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1984	Mariner	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1984	Mariner	50ELH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1984	Mariner	50ELPT	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1985	Mariner	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1985	Mariner	50ELH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1985	Mariner	50ELPT	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1986	Mariner	45ELHO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1986	Mariner	45ELO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1986	Mariner	45ELPTO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1986	Mariner	50ELO	49.8ci - 50 H.P.	Match OE #4820240M030SM	Engine - Marine	Marine
5399N	1986	Mariner	50ELPTO	49.8ci - 50 H.P.	Match OE #4820240M030SM	Engine - Marine	Marine
5399N	1987	Mariner	45ELHO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1987	Mariner	45ELO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1987	Mariner	45ELPTO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1988	Mariner	45ELHO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1988	Mariner	45ELHPTO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1988	Mariner	45ELO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1988	Mariner	45ELPTO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1989	Mariner	40ELHPTO	36.1ci - 40 H.P.		Engine - Marine	Marine
5399N	1989	Mariner	40ELPTO	36.1ci - 40 H.P.		Engine - Marine	Marine
5399N	1989	Mariner	45ELO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1989	Mariner	45ELPTO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1990	Mariner	40ELHPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1990	Mariner	40ELO	36.1ci - 40 H.P.		Engine - Marine	Marine
5399N	1990	Mariner	40ELPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1990	Mariner	40EO	36.1ci - 40 H.P.		Engine - Marine	Marine
5399N	1991	Mariner	40ELHPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1991	Mariner	40ELO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1991	Mariner	40ELPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1992	Mariner	40ELHPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1992	Mariner	40ELO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1992	Mariner	40ELPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1992	Mariner	40EO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1993	Mariner	40ELHPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1993	Mariner	40ELO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1993	Mariner	40ELPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1993	Mariner	40EO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1994	Mariner	40ELHPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1994	Mariner	40ELO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1994	Mariner	40ELPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1994	Mariner	40EO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1995	Mariner	40ELHPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1995	Mariner	40ELO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1995	Mariner	40ELPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1995	Mariner	40EO Jet 30	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1995	Mariner	40EO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1996	Mariner	40ELHPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1996	Mariner	40ELO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1996	Mariner	40ELPTO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1996	Mariner	40EO Jet 30	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1996	Mariner	40EO Magnum	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1997	Mariner	40ELHPTO	43.9ci - 40 H.P.	Model 7040xxx	Engine - Marine	Marine
5399N	1997	Mariner	40ELO	43.9ci - 40 H.P.	Model 7040xxx	Engine - Marine	Marine
5399N	1997	Mariner	40ELPTO	43.9ci - 40 H.P.	Model 7040xxx	Engine - Marine	Marine
5399N	1997	Mariner	40EO	43.9ci - 40 H.P.	Model 7040xxx	Engine - Marine	Marine
5399N	1997	Mariner	40EO Jet 30	43.9ci - 40 H.P.	Model 7040xxx	Engine - Marine	Marine
5399N	1976	Mercury	50HP	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1977	Mercury	50HP	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1978	Mercury	50E	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1978	Mercury	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1979	Mercury	50E	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1979	Mercury	50EH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1979	Mercury	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1979	Mercury	50ELH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1980	Mercury	50E	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1980	Mercury	50EH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1980	Mercury	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1980	Mercury	50ELH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1980	Mercury	50ELPT	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1981	Mercury	50E	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1981	Mercury	50EH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1981	Mercury	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1981	Mercury	50ELH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1981	Mercury	50ELPT	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1982	Mercury	50E	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1982	Mercury	50EH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1982	Mercury	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1982	Mercury	50ELH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1982	Mercury	50ELPT	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1983	Mercury	50E	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1983	Mercury	50EH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1983	Mercury	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1983	Mercury	50ELH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1983	Mercury	50ELPT	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1984	Mercury	50E	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1984	Mercury	50EH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1984	Mercury	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1984	Mercury	50ELH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1984	Mercury	50ELPT	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1985	Mercury	50EL	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1985	Mercury	50ELH	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1985	Mercury	50ELPT	43.9ci - 50 H.P.		Engine - Marine	Marine
5399N	1986	Mercury	45ELHO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1986	Mercury	45ELO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1986	Mercury	45ELPTO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1987	Mercury	45ELHO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1987	Mercury	45ELO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1987	Mercury	45ELPTO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1988	Mercury	45ELHO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1988	Mercury	45ELHPTO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1988	Mercury	45ELO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1988	Mercury	45ELPTO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1989	Mercury	40ELHPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1989	Mercury	40ELO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1989	Mercury	40ELPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1989	Mercury	45ELO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1989	Mercury	45ELPTO	43.9ci - 45 H.P.		Engine - Marine	Marine
5399N	1990	Mercury	40ELHPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1990	Mercury	40ELO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1990	Mercury	40ELPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1991	Mercury	40ELHPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1991	Mercury	40ELO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1991	Mercury	40ELPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1992	Mercury	40ELHPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1992	Mercury	40ELO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1992	Mercury	40ELPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1992	Mercury	40EO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1993	Mercury	40ELHPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1993	Mercury	40ELO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1993	Mercury	40ELPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1993	Mercury	40EO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1994	Mercury	40ELHPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1994	Mercury	40ELO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1994	Mercury	40ELPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1994	Mercury	40EO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1994	Mercury	40EO Jet 30	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1995	Mercury	40ELHPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1995	Mercury	40ELO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1995	Mercury	40ELPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1995	Mercury	40EO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1995	Mercury	40EO Jet 30	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1996	Mercury	40ELHPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1996	Mercury	40ELO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1996	Mercury	40ELPTO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1996	Mercury	40EO	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1996	Mercury	40EO Jet 30	43.9ci - 40 H.P.		Engine - Marine	Marine
5399N	1997	Mercury	40ELHPTO	43.9ci - 40 H.P.	Model 7040xxx	Engine - Marine	Marine
5399N	1997	Mercury	40ELO	43.9ci - 40 H.P.	Model 7040xxx	Engine - Marine	Marine
5399N	1997	Mercury	40ELPTO	43.9ci - 40 H.P.	Model 7040xxx	Engine - Marine	Marine
5399N	1997	Mercury	40EO	43.9ci - 40 H.P.	Model 7040xxx	Engine - Marine	Marine
5399N	1997	Mercury	40EO Jet 30	43.9ci - 40 H.P.	Model 7040xxx	Engine - Marine	Marine

United Technologies 1097028-M030SM, 1097028MO30SM, 4820240-M030SM

Starter-United Technologies PMDD - Outboard Mariner Mercury - United Technologies 1097028-M030SM, 1097028MO30SM, 4820240-M030SM

Product Description

Specification

Starter Mariner Mercury Outboard 50-57485 50-65436

United Technologies 4838740-M030SM, 4838740MO30SM, SM18059, SM48387

Mercury Marine 50-893889T, 50-8M0033984, 50-90983A, 50-90983A1, 50-90983T1

United Technologies 4820240MO30SM 996240 SM10790 SM10970 SM48202

United Technologies 1097028-M030SM, 1097028MO30SM, 4820240-M030SM

Starter-United Technologies PMDD - Outboard Mariner Mercury - United Technologies 1097028-M030SM, 1097028MO30SM, 4820240-M030SM

Product Description

Specification

Related Products

Starter Mariner Mercury Outboard 50-57485 50-65436

United Technologies 4838740-M030SM, 4838740MO30SM, SM18059, SM48387

Mercury Marine 50-893889T, 50-8M0033984, 50-90983A, 50-90983A1, 50-90983T1

United Technologies 4820240MO30SM 996240 SM10790 SM10970 SM48202
