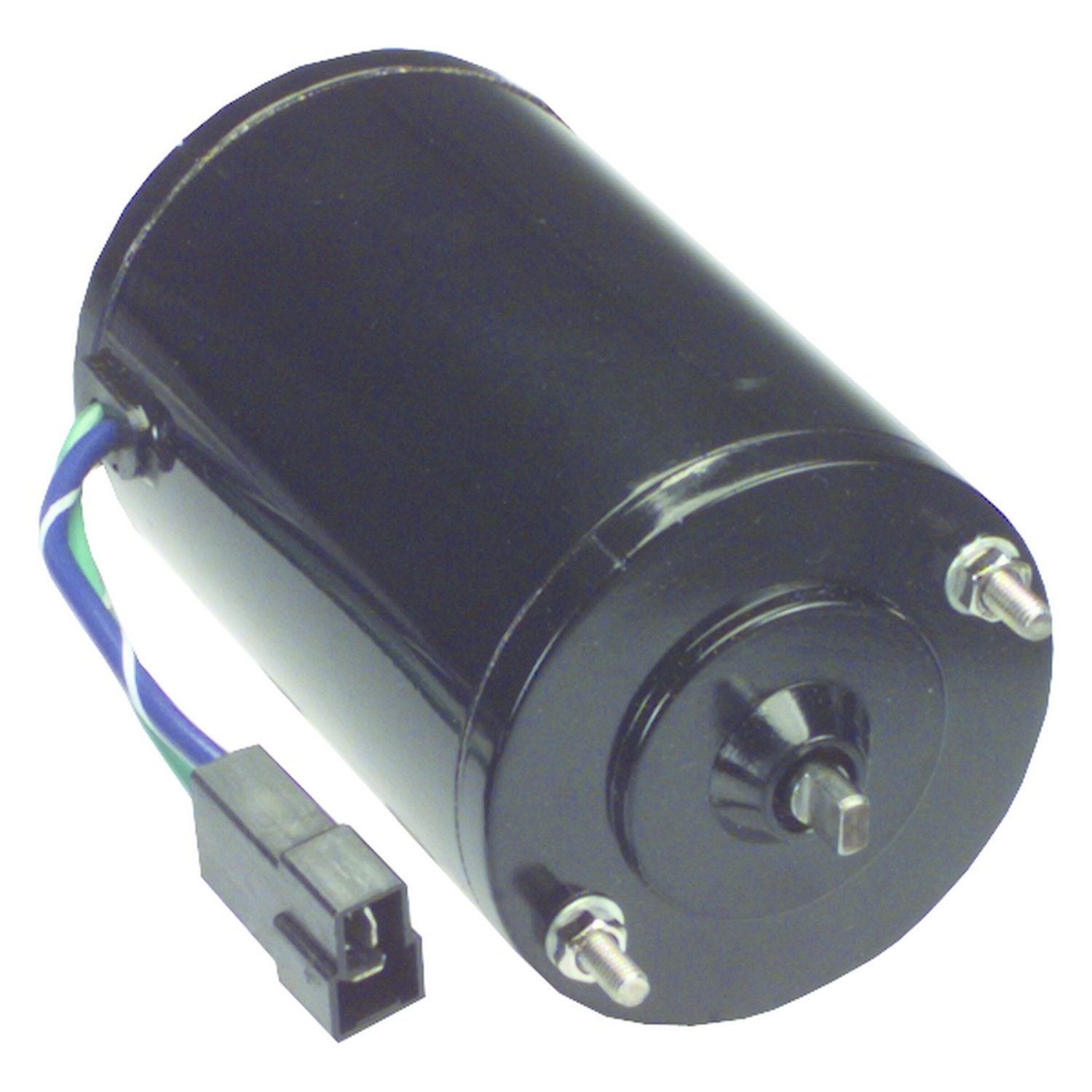

Product Description

10845N
For :
Tilt Trim
Notes:
Motor only w/ 2-wire connection
Features:
100% New
Also See: 10819N
Used On:
Volvo Penta (1976-2005)
Replaces:
Volvo-Penta 854525-3
Unit Nos: Volvo-Penta 3857265-7, 3861027-5, 854346-4
API MARINE PT406NM
ARCO MARINE 6232
Lester Nos: 10845
Voltage:12
Rotation:Reversible
Field Hsg OD:75.7mm / 2.980in
Overall Length:145mm / 5.709in
Shaft OD:8mm / 0.315in
Shaft Notes:4mm Drive Tang
New or Remanufactured:New
Approximate Weight:4.42 lbs / 2.01 kg

Specification

WAI	Year	Make	Model	Remarks	Vehicle Type Name	Vehicle Type Group Name
10845N	1976	Volvo Penta	TMD40	Motor Only	Engine - Marine	Marine
10845N	1978	Volvo Penta	TMD40	Motor Only	Engine - Marine	Marine
10845N	1979	Volvo Penta	TAMD40A,B,C	Motor Only	Engine - Marine	Marine
10845N	1979	Volvo Penta	TMD40	Motor Only	Engine - Marine	Marine
10845N	1980	Volvo Penta	TAMD40A,B,C	Motor Only	Engine - Marine	Marine
10845N	1980	Volvo Penta	TMD40	Motor Only	Engine - Marine	Marine
10845N	1981	Volvo Penta	TAMD40A,B,C	Motor Only	Engine - Marine	Marine
10845N	1981	Volvo Penta	TMD40	Motor Only	Engine - Marine	Marine
10845N	1982	Volvo Penta	TAMD40A,B,C	Motor Only	Engine - Marine	Marine
10845N	1982	Volvo Penta	TMD40	Motor Only	Engine - Marine	Marine
10845N	1983	Volvo Penta	TAMD30,A,B,C	Motor Only	Engine - Marine	Marine
10845N	1983	Volvo Penta	TAMD40A,B,C	Motor Only	Engine - Marine	Marine
10845N	1983	Volvo Penta	TMD30A,B	Motor Only	Engine - Marine	Marine
10845N	1983	Volvo Penta	TMD40	Motor Only	Engine - Marine	Marine
10845N	1984	Volvo Penta	TAMD30,A,B,C	Motor Only	Engine - Marine	Marine
10845N	1984	Volvo Penta	TAMD40A,B,C	Motor Only	Engine - Marine	Marine
10845N	1984	Volvo Penta	TMD30A,B	Motor Only	Engine - Marine	Marine
10845N	1984	Volvo Penta	TMD40	Motor Only	Engine - Marine	Marine
10845N	1985	Volvo Penta	TAMD30,A,B,C	Motor Only	Engine - Marine	Marine
10845N	1985	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1985	Volvo Penta	TMD30A,B	Motor Only	Engine - Marine	Marine
10845N	1985	Volvo Penta	TMD40	Motor Only	Engine - Marine	Marine
10845N	1986	Volvo Penta	TAMD30,A,B,C	Motor Only	Engine - Marine	Marine
10845N	1986	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1986	Volvo Penta	TAMD40A,B,C	Motor Only	Engine - Marine	Marine
10845N	1986	Volvo Penta	TMD30A,B	Motor Only	Engine - Marine	Marine
10845N	1986	Volvo Penta	TMD31A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1986	Volvo Penta	TMD40	Motor Only	Engine - Marine	Marine
10845N	1986	Volvo Penta	TMD41A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1987	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1987	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	1987	Volvo Penta	TMD31A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1987	Volvo Penta	TMD41A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1988	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1988	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	1988	Volvo Penta	TMD31A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1988	Volvo Penta	TMD41A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1989	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1989	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	1989	Volvo Penta	TMD31A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1989	Volvo Penta	TMD41A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1990	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1990	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	1990	Volvo Penta	TMD31A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1990	Volvo Penta	TMD41A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1991	Volvo Penta	KAD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1991	Volvo Penta	KAMD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1991	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1991	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	1991	Volvo Penta	TMD31A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1991	Volvo Penta	TMD41A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1992	Volvo Penta	KAD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1992	Volvo Penta	KAMD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1992	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1992	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	1992	Volvo Penta	TMD31A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1992	Volvo Penta	TMD41A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1993	Volvo Penta	KAD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1993	Volvo Penta	KAMD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1993	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1993	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	1993	Volvo Penta	TMD31A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1993	Volvo Penta	TMD41A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1994	Volvo Penta	KAD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1994	Volvo Penta	KAMD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1994	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1994	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	1994	Volvo Penta	TMD31A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1994	Volvo Penta	TMD41A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1995	Volvo Penta	KAD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1995	Volvo Penta	KAMD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1995	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1995	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	1995	Volvo Penta	TMD31A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1995	Volvo Penta	TMD41A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1996	Volvo Penta	KAD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1996	Volvo Penta	KAMD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1996	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1996	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	1996	Volvo Penta	TMD31A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1996	Volvo Penta	TMD41A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1997	Volvo Penta	KAD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1997	Volvo Penta	KAMD42A,B,P	Motor Only	Engine - Marine	Marine
10845N	1997	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1997	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	1997	Volvo Penta	TMD31A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1997	Volvo Penta	TMD41A,B,D,L	Motor Only	Engine - Marine	Marine
10845N	1998	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1998	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	1999	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	1999	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	2000	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	2000	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	2001	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	2001	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	2002	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	2002	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	2003	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	2003	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	2004	Volvo Penta	TAMD31A,B,D,L,M,P,S,X	Motor Only	Engine - Marine	Marine
10845N	2004	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
10845N	2005	Volvo Penta	TAMD41A	Motor Only	Engine - Marine	Marine
