Product Description

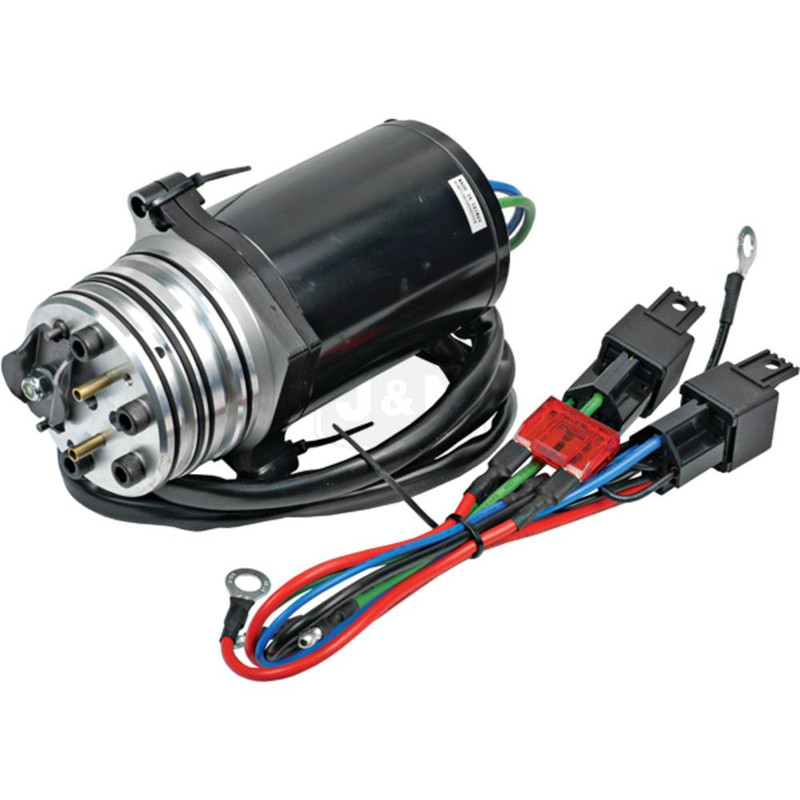

Trim motor Mercury Mariner 35-225 H.P. 99186 99186-1 99186-T 991861 991861
1985-92 With Design 1, 3-Ram Side
Fill Integral Trim/Tilt System
LESTER 10815P, 10858
CRITICAL NOTE The Replacement Assembly Comes With An Updated 2-Wire Motor, Updated Relay And Harness Kit
LENGTH 172 mm
LENGTH 6.772″
OD 3.071″
OD 78 mm
VOLT 12
Replaces Square Eaton & Round Prestolite Style Units. Replacement Tilt/Trim Motor & Cartridge Pump. Services 3 Ram@ 3 Wire Systems
CONDITION New
CURRENT TYPE DC
ROTATION DIRECTION Reversible
TERMINAL 2 SIZE Spade
TERMINAL 3 SIZE Spade
TERMINAL 4 SIZE Spade
WARRANTY 1 Year
Rplc. Merc #’s 99186, 99186-1 & 99186T
Rplc. Round Prestolite Motor & Square Eaton
LESTER10815P, 10858
MERCURY MARINE826729A10, 99186, 99186-1, 99186T
SIERRA MARINE18-6273-1
CRITICAL NOTE The Replacement Assembly Comes With An Updated 2-Wire Motor, Updated Relay And Harness Kit
Replaces:
Mercury Marine 99186, 99186-1, 99186-T, 991861
PT475N, PT475TN, PT475TN-2
Lester Nos: 10858
Voltage: 12
Rotation: Reversible
Field Hsg OD: 78mm / 3.071in
Overall Length: 172mm / 6.772in
Terminal 1 Size: Spade
Terminal 2 Size: Spade
Terminal 3 Size: Spade
Approximate Weight: 7.4 lbs / 3.36 kg
