Mercury Marine 811628

Mercury Marine 811628
  • Mercury Marine 811628
  • Mercury Marine 811628

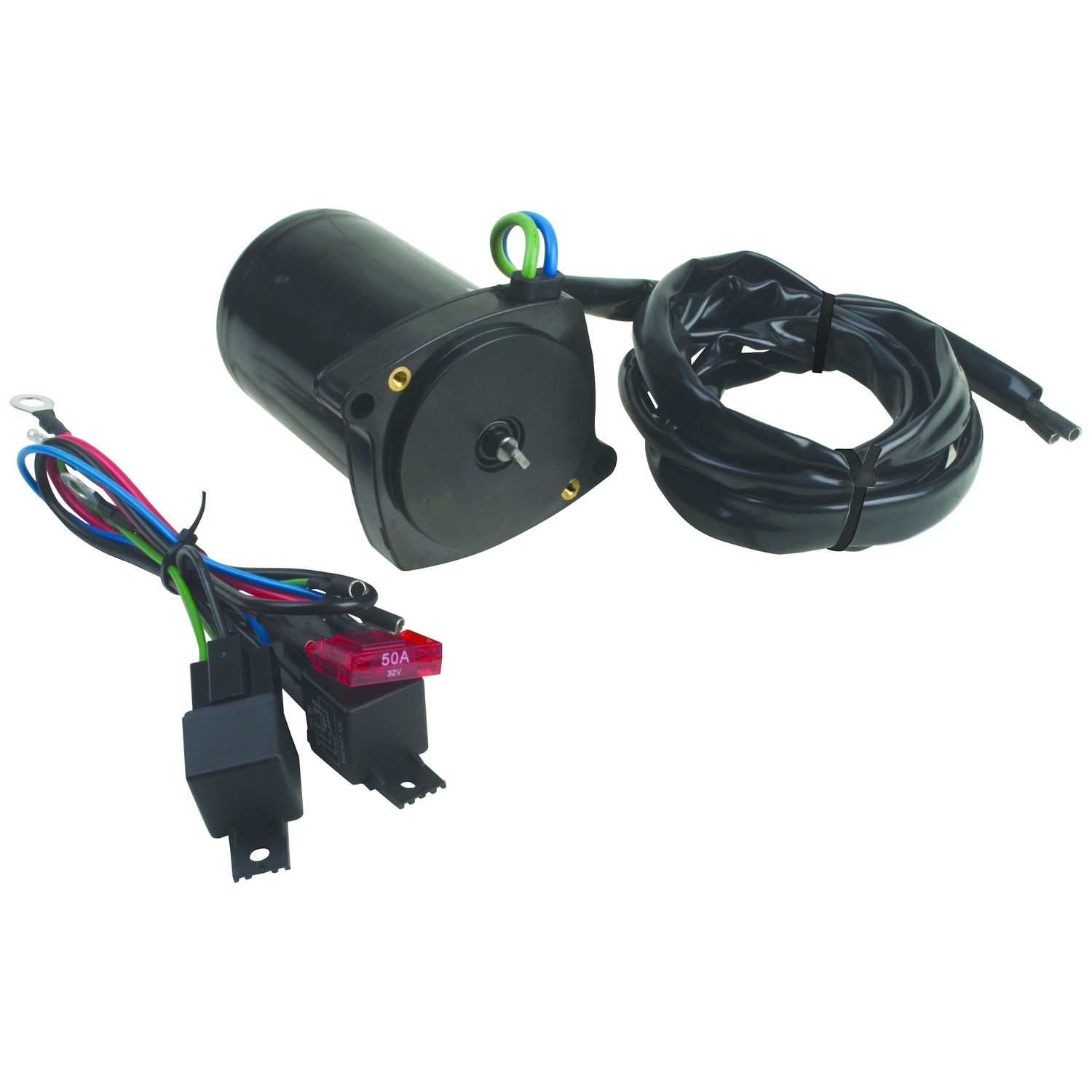

Tilt Trim Motor - Outboard Mercury - Mercury Marine 811628

$USD 139.00
SKU: 10820N Category:

Product Description

10820N
For :
Tilt Trim
Features:
100% New
New style design
Replaces older 3 wire units
Used On:
Mercury (1992-1995)
Replaces:
Mercury Marine 811628
API MARINE: PT485NMK-3
ARCO MARINE: 6279
ARROWHEAD: TRM0011
J & N: 430-20026
J & N (OLD): 430-22009
LESTER: 10820
MERCURY MARINE: 811628
SIERRA MARINE: 18-6774
WAI: 82-68103
Lester Nos: 10820Voltage: 12 Volts
Rotation: Reversible
Field Hsg OD: 78.1mm / 3.075in
Overall Length: 138.4mm / 5.449in
Shaft OD: 7.4mm / 0.291in
Shaft Notes: Blade
Terminal 1 Size: 1/4″ Ring Terminal
Terminal 2 Size: 1/4″ Ring Terminal
Terminal 3 Size: 1/4″ Ring Terminal
New or Remanufactured: New
Approximate Weight: 5.95 lbs / 2.70 kg

Specification

WAIYearMakeModelEngineRemarksRemarksRemarksVehicle Type NameVehicle Type Group Name
10820N1992Mercury35 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1992Mercury40 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1992Mercury50 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1992Mercury60 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1992Mercury70 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1992Mercury75 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1992Mercury90 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1992Mercury100 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1992Mercury115 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1992Mercury135 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1992Mercury150 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1992Mercury175 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1992Mercury200 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1993Mercury35 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1993Mercury40 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1993Mercury50 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1993Mercury60 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1993Mercury70 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1993Mercury75 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1993Mercury90 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1993Mercury100 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1993Mercury115 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1993Mercury135 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1993Mercury150 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1993Mercury175 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1993Mercury200 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1994Mercury35 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1994Mercury40 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1994Mercury50 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1994Mercury60 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1994Mercury70 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1994Mercury75 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1994Mercury90 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1994Mercury125 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1994Mercury135 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1994Mercury150 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1994Mercury175 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1994Mercury200 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1995Mercury35 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1995Mercury40 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1995Mercury50 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1995Mercury60 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1995Mercury70 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1995Mercury75 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1995Mercury90 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1995Mercury120 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1995Mercury125 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1995Mercury135 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1995Mercury150 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1995Mercury175 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
10820N1995Mercury200 H.P.Square Motor, Design II, Aft Fill, 3-Ram IntegralOutboard MotorMarine
